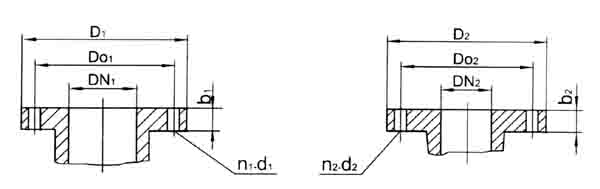

Flange Dimensions
|
泵型號 |
法蘭壓力 |
進口法蘭Suction Flange |
出口法蘭Discharge Flange |
||||||||
|
Type |
等級 (Mpa) |
DN1 |
Do1 |
D1 |
b1 |
n1-d1 |
DN2 |
Do2
|
D2 |
b2 |
n2-d2 |
|
250-800 |
4.0 |
300 |
450 |
515 |
42 |
16-ф33 |
250 |
385 |
450 |
38 |
12-ф33 |
|
350-575 |
1.6 |
400 |
525 |
580 |
38 |
16-ф30 |
350 |
470 |
520 |
36 |
16-ф28 |
|
350-690 |
2.5 |
400 |
550 |
620 |
40 |
16-ф36 |
350 |
490 |
555 |
44 |
16-ф34 |
|
400-525 |
1.0 |
500 |
620 |
670 |
34 |
20-ф28 |
400 |
515 |
565 |
32 |
16-ф28 |
|
400-665 |
1.6 |
500 |
650 |
715 |
42 |
20-ф34 |
400 |
525 |
580 |
38 |
16-ф30 |
|
400-675 |
|
|
|
|
|
|
|
|
|
|
|
|
400-705 |
1.0 |
500 |
620 |
670 |
34 |
20-ф28 |
400 |
515 |
565 |
32 |
16-ф28 |
|
400-935 |
2.5 |
500 |
660 |
730 |
44 |
20-ф36 |
400 |
550 |
620 |
40 |
16-ф36 |
|
500-585 |
|
|
|
|
|
|
|
|
|
|
|
|
500-685 |
1.0 |
600 |
725 |
780 |
36 |
20-ф31 |
500 |
620 |
670 |
34 |
20-ф28 |
|
500-835 |
|
|
|
|
|
|
|
|
|
|
|
|
500-860 |
1.6 |
600 |
770 |
840 |
48 |
20-ф37 |
500 |
650 |
715 |
42 |
20-ф34 |
|
500-1015 |
|
|
|
|
|
|
|
|
|
|
|
|
500-1035 |
2.5 |
600 |
770 |
845 |
46 |
20-ф39 |
500 |
660 |
730 |
44 |
20-ф36 |
|
600-600 600-705 |
1.O |
700 |
840 |
895 |
40 |
24-ф31 |
600 |
725 |
780 |
36 |
20-ф31 |
|
600-885 |
1.6 |
700 |
840 |
9lO |
54 |
24-ф37 |
600 |
770 |
840 |
48 |
20-ф37 |
|
600-1075 |
2.5 |
700 |
875 |
960 |
50 |
24-ф2 |
600 |
770 |
845 |
46 |
20-ф39 |
|
700-980 |
1.6 |
800 |
950 |
1025 |
58 |
24-ф0 |
700 |
840 |
910 |
54 |
24-ф37 |
注：1、表內為常規(guī)法蘭尺寸；2、可根據進口壓力或溫度的不同選擇不同的公斤等級法蘭。
Note：1.Listed are the normal
flange rating；
2.According to
different suction pressure or different temperature to select various rating of
the flange correspondingly.
|
