The type CWY Marine Diesel
Engine Emergency Fire Pump manufacture based on the related stipulations of the
CCS ‘Rules and Regulations for the Construction and Classification of Sea-going
Steel Ships 1996' and the‘International Convention For the
Safety of Lift at Sea'. It can be used mainly of ship's emergency fire fighting
and also for the enterprise of factory/mineral, port/wharf, store/cargo store
etc. The pump unit is provided with the advantages of light weight, small
volume, move nimbly, start quickly, water-exit fleetly, big capacity of EO.
tank, corrode resistance, use reliably, convenient for repair and maintain, and
so on.
It allow to fit and use the
storage battery for the starting deride.
|

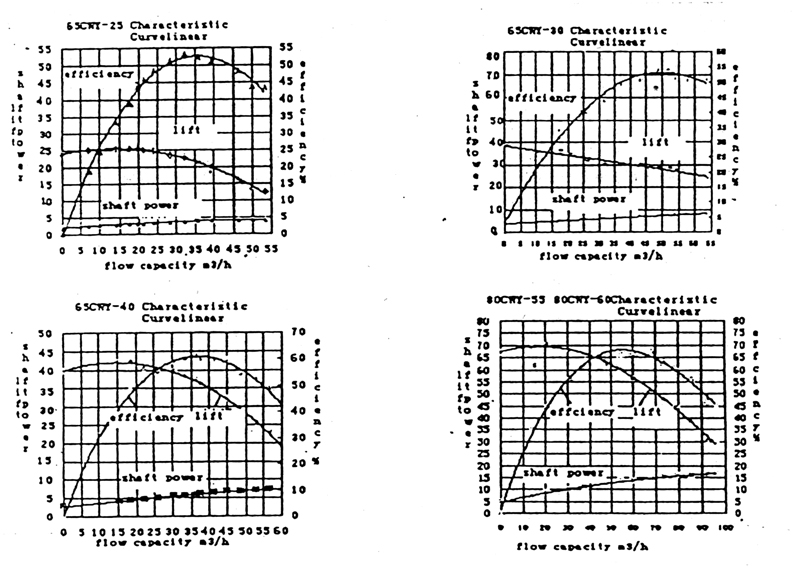

1)Pump Characteristic
Parameter
|
|
Flow |
Lift |
Rate |
Suction |
W.exit |
Efficiency |
Diesel Engine |
Suc/Out． |
Pump |
|
|
Type |
Rate m³/h |
m |
of rev r/min |
lift m |
time S |
% |
Type |
Power |
Diameter mm |
Unit net Weight kg |
|
65CWY-25 |
20 |
25 |
3600 |
5-6
|
≤35 |
63 |
KM178F |
4 |
65/50 |
70 |
|
65CWY-30 |
25 |
30 |
3600 |
5-6
|
≤35 |
63 |
KM186F |
6 |
65/50 |
70 |
|
65CWY-40 |
30 |
40 |
3600 |
6-7 |
≤35 |
65 |
KM186F |
6 |
65/50 |
87 |
|
80CWY-55 |
60 |
55 |
3500 |
6-7 |
≤35 |
68 |
KM376QC |
16 |
80/50 |
240 |
|
80CWY-60 |
50 |
60 |
3500 |
6-7 |
≤35 |
66 |
KM376QC |
16 |
80/50 |
240 |
