型號 Model |
排出口徑 Drain-out aperture mm |
流量 Flow m³/h |
揚程 Head m |
轉速 Speed r/min |
功率 Power kW |
效率 Efficiency % |
重量 Weight Kg |
|
550WQ3000-12-160 |
φ550 |
3000 |
12 |
740 |
160 |
85 |
2380 |
|
550WQ4200-1O-185 |
φ550 |
4200 |
10 |
740 |
185 |
82 |
2380 |
|
550WQ3000-16-220 |
φ550 |
3000 |
16 |
740 |
200 |
85 |
2500 |
|
550WQ5000-10-220 |
φ550 |
5000 |
10 |
740 |
220 |
84 |
2500 |
說明：JYWQ型自動攪勻潛水排污泵性能參數等同WQ型潛水式排污泵(見上表)。外形尺寸見下頁。
Note:
the parameters of model JYWQ aut-ostirring submersible sewage pump are identical
to those of model WQ submersible sewage pump (see the table above), see the next
page for the out-form dimensions.
|

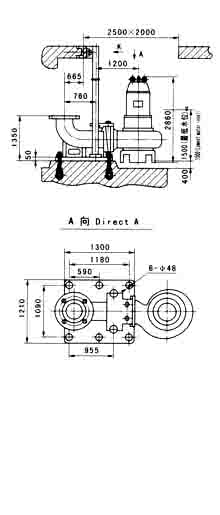

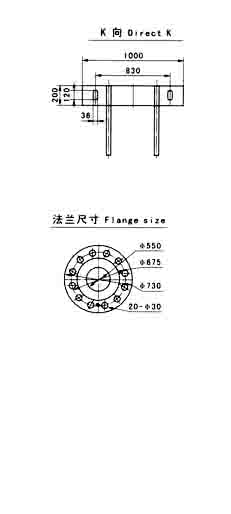

自動耦合式安裝
Auto-coupling
installation
|
軟管移動式安裝
Hose
movable installation
|
