型號 Model |
排出口徑 Drain-out aperture mm |
流量 Flow m³/h |
揚程 Head m |
轉(zhuǎn)速 Speed r/min |
功率 Power kW |
效率 Efficiency % |
重量 Weight Kg |
|
500WQ3000-15-200 |
φ500 |
3000 |
15 |
740 |
200 |
82 |
2280 |
|
500WQ2500-20-200 |
φ500 |
2500 |
20 |
740 |
200 |
78 |
2280 |
|
500WQ2800-18-220 |
φ500 |
2800 |
18 |
740 |
220 |
83 |
2350 |
|
500WQ2400-22-220 |
φ500 |
2400 |
22 |
740 |
220 |
84 |
2350 |
|
500WQ4000-15-250 |
φ500 |
4000 |
15 |
980 |
250 |
84 |
2650 |
|
500WQ2600-24-250 |
φ500 |
2600 |
24 |
980 |
250 |
82 |
2650 |
說明：JYWQ型自動攪勻潛水排污泵性能參數(shù)等同WQ型潛水式排污泵(見上表)。外形尺寸見下頁。
Note:
the parameters of model JYWQ aut-ostirring submersible sewage pump are identical
to those of model WQ submersible sewage pump (see the table above), see the next
page for the out-form dimensions.
|

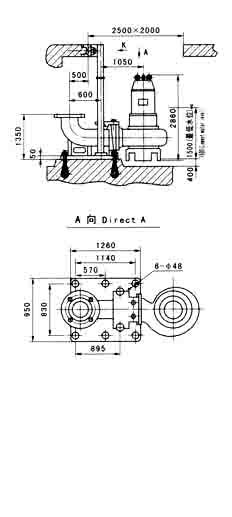

自動耦合式安裝
Auto-coupling
installation
|
軟管移動式安裝
Hose
movable installation
|
