型號 Model |
排出口徑 Drain-out aperture mm |
流量 Flow m³/h |
揚程 Head m |
轉速 Speed r/min |
功率 Power kW |
效率 Efficiency % |
重量 Weight Kg |
|
150WQ200-14-18.5 |
φ150 |
200 |
14 |
1450 |
18.5 |
68 |
400 |
|
150WQ180-20-18.5 |
φ150 |
180 |
20 |
1450 |
18.5 |
68 |
400 |
|
150WQ150-25-18.5 |
φ150 |
150 |
25 |
1450 |
18.5 |
68 |
400 |
|
150WQ200-22-22 |
φ150 |
200 |
22 |
1450 |
22 |
73 |
430 |
|
150WQ180-25-22 |
φ150 |
180 |
25 |
1450 |
22 |
76 |
430 |
|
150WQ130-30-22 |
φ150 |
130 |
30 |
1450 |
22 |
75 |
430 |
說明：JYWQ型自動攪勻潛水排污泵性能參數等同WQ型潛水式排污泵(見上表)。外形尺寸見下頁。
Note:
the parameters of model JYWQ autostirring submersible
sewage pump are identical to those of model WQ submersible sewage pump (see the
table above), see the next page for the out-form dimensions.
|

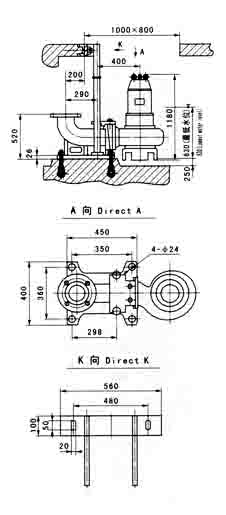

自動耦合式安裝
Auto—coupling
installation
|

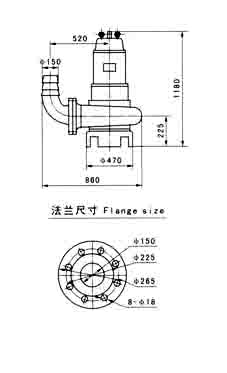

軟管移動式安裝
Hose
movable installation
|
注：JYWQ型自動攪勻排污泵其安裝尺寸參照WQ型潛水排污泵進行。
Note：refer to model WQ
submersible sewage pump for the installation dimensions of model JYWQ auto-stirring
sewage pump．
|
|
型號Model |
H |
A |
B |
C |
|
150WQ200-14-18.5 |
1300 |
550 |
1200 |
800 |
|
150WQ180-20-18.5 |
1300 |
550 |
1200 |
800 |
|
150WQ150-25-18.5 |
1300 |
550 |
1200 |
800 |
|
150WQ200-22-22 |
1450 |
503 |
1100 |
760 |
|
150WQ180-25-22 |
1450 |
503 |
1100 |
760 |
|
150WQ130-30-22 |
1450 |
503 |
1100 |
760 |
