型號 Model |
排出口徑 Drain-out aperture mm |
流量 Flow m³/h |
揚程 Head m |
轉速 Speed r/min |
功率 Power kW |
效率 Efficiency % |
重量 Weight Kg |
|
150WQ140-7-5.5 |
φ150 |
140 |
7 |
1450 |
5.5 |
72 |
180 |
|
150WQ120-10-5.5 |
φ150 |
120 |
10 |
1450 |
5.5 |
70 |
180 |
|
150WQ21O-7-7.5 |
φ150 |
210 |
7 |
1450 |
7.5 |
75 |
190 |
|
150WQ145-9-7.5 |
φ150 |
145 |
9 |
1450 |
7.5 |
63 |
190 |
|
150WQ110-15-7.5 |
φ150 |
110 |
15 |
1450 |
7.5 |
72 |
190 |
說明：JYWQ型自動攪勻潛水排污泵性能參數等同WQ型潛水式排污泵(見上表)。外形尺寸見下頁。
Note:
the parameters of model JYWQ autostirring submersible sewage pump are identical
to those of model WQ submersible sewage pump (see the table above), see the next
page for the out-form dimensions.
|

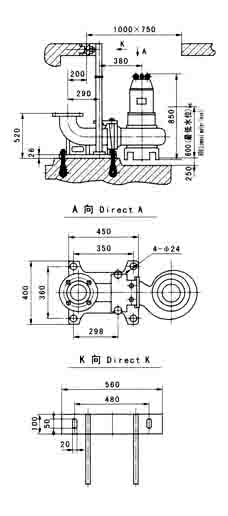

自動耦合式安裝
Auto-coupling
installation
|

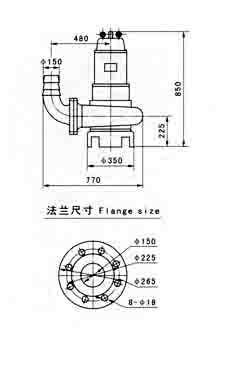

軟管移動式安裝
Hose
movable installation
|
注：JYWQ型自動攪勻排污泵其安裝尺寸參照WQ型潛水排污泵進行。
Note：refer to model WQ
submersible sewage pump for the installation dimensions of model JYWQ
auto-stirring sewage pump．
|
|
型號Model |
H |
A |
B |
C |
|
150WQ140-7-5.5 |
1100 |
470 |
1047 |
730 |
|
150WQ120-1O-5.5 |
1100 |
470 |
1047 |
730 |
|
150WQ21O-7-7.5 |
1200 |
480 |
1100 |
740 |
|
150WQ145-9-7.5 |
1200 |
480 |
1100 |
740 |
|
150WQ110-15-7.5 |
1200 |
480 |
1100 |
740 |
